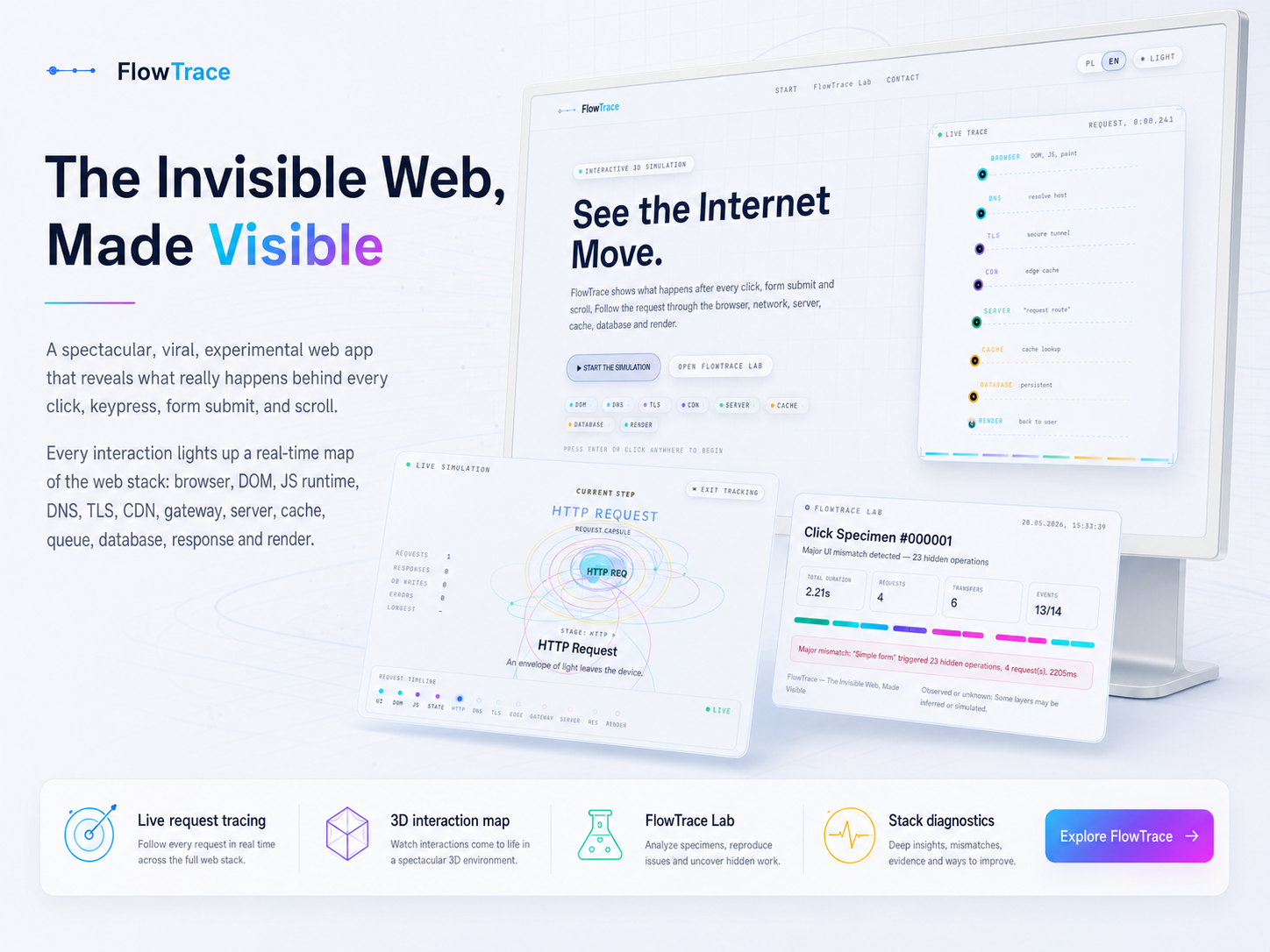

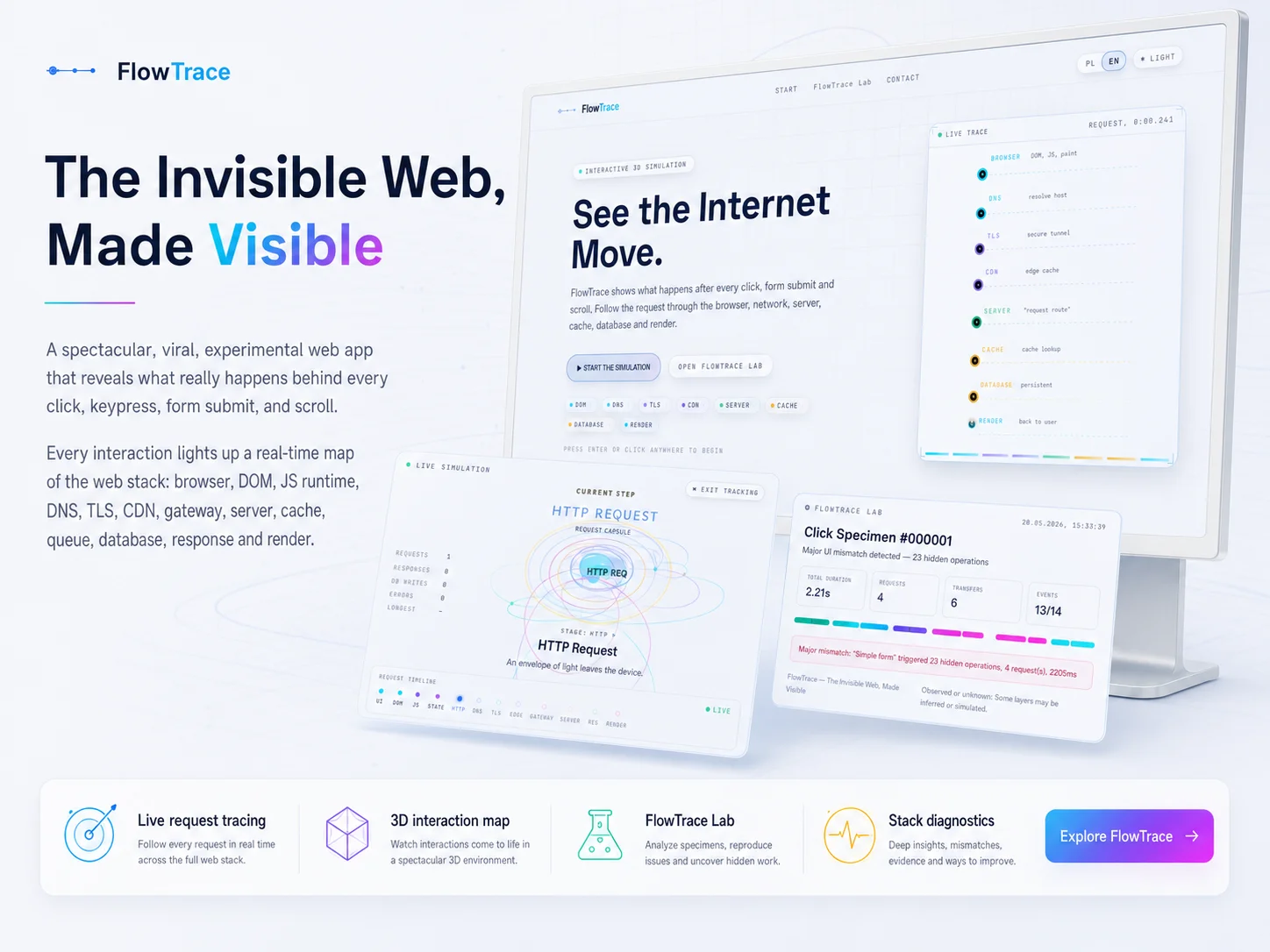

FlowTrace - Visualizing What Happens Behind a Click
Educational visualization of the full web request and render flow.
Web Application Live
About
FlowTrace is an experimental educational web application that visualizes what really happens behind common user actions: a click, a keypress, a form submit, a scroll. It traces the request and render path across the full web stack - browser event loop, DOM, JavaScript runtime, DNS, TLS, CDN, gateway, server, cache, queue, database, response and render - and turns each layer into something a developer or student can see and step through.
The project explores several interactive modes, including a high-level system view, a cinematic journey along the request path, a first-person flow through the stack and a scenario builder for custom flows, alongside a FlowTrace Lab concept for hands-on experimentation.
Key Features
Click, Keypress, Submit, Scroll Triggers
FlowTrace starts from a concrete user action and traces what happens next, instead of explaining the web stack in the abstract.
Full Stack Trace - Browser to Render
Each visualization walks the same path: browser event loop, DOM, JS runtime, DNS, TLS, CDN, gateway, server, cache, queue, database, response and back to render.
3D System Flow Simulation
An interactive 3D scene shows requests moving through the stack in real time so the order, fan-out and bottlenecks are visible at a glance.
Multiple Viewing Modes
System view for the big picture, cinematic journey for guided playback, first-person flow for the stack-from-inside perspective, and a scenario builder for custom flows.
FlowTrace Lab (Experimental)
An exploratory sandbox concept where individual layers can be inspected, toggled or made to fail, to see how the rest of the stack reacts.
Built for Learning
Designed for developers, students and bootcamps - the goal is intuition about how a real request travels, not a marketing demo.
Theme & Responsive Aware
Where the project ships theming and responsive support, the visualizations follow the rest of the site for a consistent look on light, dark and mobile.
